TM 9-2320-360-34-1
(4)
Coat new gasket (4) with grease.
(5)
Install new gasket (4) on blower housing
(5).
(6)
Install fork (6) on fuel supply pump (3).
CAUTION
· Slot in fork must align with blower
shaft and fuel pump.
· Do
not
overtighten
screws.
Failure to comply may result in
damage to equipment.
(7)

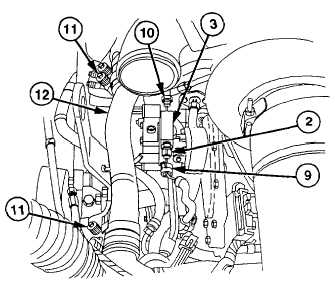

Align fork (6) with blower shaft (7). Install
fuel supply pump (3) on blower housing
(5) with three new screws (8).
(8)
Connect
wire
harness
(9)
to
fuel
temperature sensor (2).
(9)
Install fuel hose (10) on fuel supply pump
(3).
(10)
Loosen
two
inside
clamps
(11)
on
crossover tube (12).
(11)
Rotate crossover tube (12) upright toward
fuel supply pump (3).
CAUTION
Clamps must be positioned next to
bead on crossover tube. Do not
position clamps over bead. Failure to
comply may result in coolant leak
and damage to equipment.
NOTE
When clamp is properly tightened,
washer stacks should be nearly
collapsed flat and screw tip should
extend beyond clamp 3/16 in. (8
mm).
(12)
Tighten
two
inside
clamps
(11)
on
crossover
tube
(12)
to
90
lb-in.
(10.1 Nm).
4-13
|
