TM 9-2320-360-34-1
4-4. FUEL SUPPLY PUMP/COUPLING FORK REPAIR (CONT)
d.
Assembly
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
NOTE
Bottom hole is left open to act as a
drain.
(1)
Coat threads of two pipe plugs (1) with
pipe thread sealing compound.
(2)
Install plugs (1) in upper holes of fuel
pump housing (2).
(3)

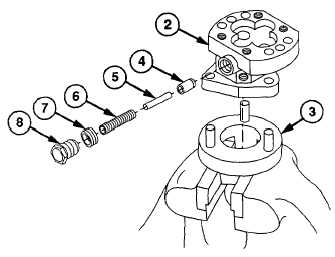

Position fuel pump holder (3) in vise.
(4)
Position fuel pump housing (2) in holder
(3).
(5)
Coat valve (4) with lubricating oil.
(6)
Install valve (4), pin (5), spring (6), new
gasket (7), and plug (8) in housing (2).
(7)
Coat two new oil seals (9 and 10) with
lubricating oil.
(8)
Position fuel pump housing (2) on top of
two wooden blocks.
4-10
|
