TM 9-2320-360-34-1
NOTE
When oil seals are properly installed,
seal lips will face each other.
(9)

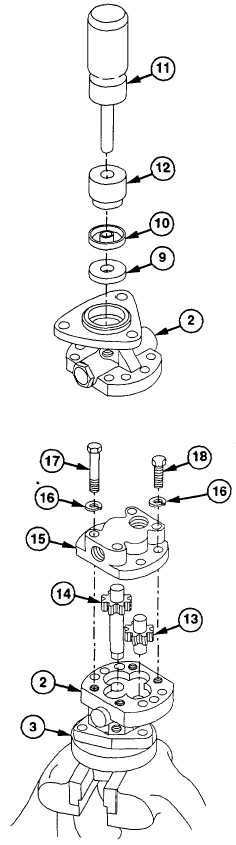

Install new inner oil seal (9) on pilot (pin)
of oil seal installer (11).
(10)
Install inner oil seal (9) in housing (2) until
seated.
(11)
Install adapter (J1508-9) (12) on oil seal
installer handle (11).
(12)
Install new outer seal (10) on pilot of oil
seal installer (11).
(13)
Install outer oil seal (10) in housing (2)
until seated.
(14)
Position fuel pump housing (2) in holder
(3).
(15)
Coat two drive shaft and gear assemblies
(13 and 14) with lubricating oil. Install
assemblies (13 and 14) in housing (2).
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
CAUTION
· When applying adhesive-sealant
to pump cover, ensure adhesive-
sealant
stays
out
of
gear
compartment. Damage to gear
compartment may result.
· Apply only a thin coat of adhesive-
sealant
to
pump.
Excessive
sealant will reduce efficiency of
pump.
(16)
Coat mating surface of cover (15) with
adhesive-sealant.
(17)
Install cover (15) on housing (2) with eight
new lockwashers (16) and screws (17 and
18).
Tighten
screws
evenly
and
alternately to 108 lb-in. (12.2 Nm).
4-11
|
