TM 9-2320-360-34-1
4-4. FUEL SUPPLY PUMP/COUPLING FORK REPAIR (CONT)
(11)

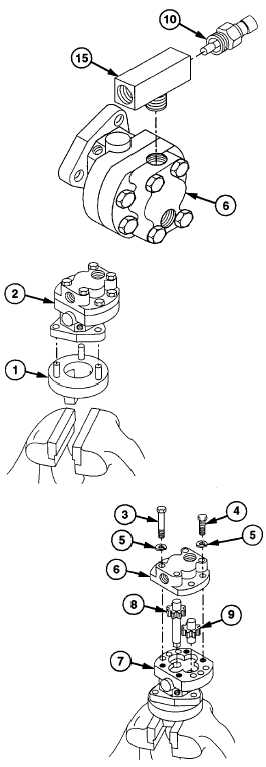

Remove fuel temperature sensor (10)
from tee (15).
(12)
Remove tee (15) from fuel supply pump
(6).
b.
Disassembly
(1)
Position fuel pump holder (1) in vise.
(2)
Position fuel supply pump (2) in fuel pump
holder (1).
(3)
Remove
eight
screws
(3
and
4),
lockwashers (5), and cover (6) from
housing (7). Discard lockwashers.
CAUTION
Fuel pump drive shaft and gear are
one piece. Do not attempt to remove
gear from shaft. Failure to comply
may result in damage to equipment.
(4)
Remove drive shaft and gear assembly (8)
from housing (7).
(5)
Remove drive shaft and gear assembly (9)
from housing (7).
4-8
|
