TM 9-2320-360-34-1
(4)

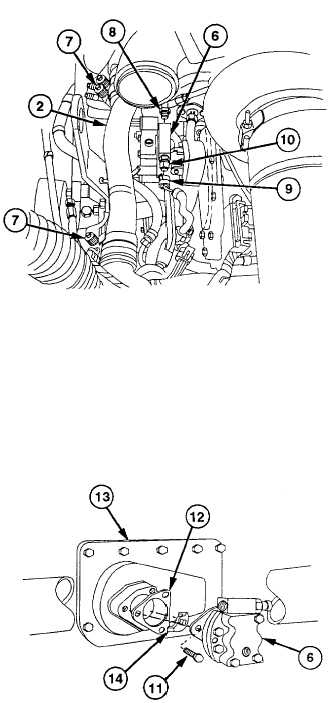

Loosen two inside damps (7) on crossover
tube (2).
(5)
Rotate crossover tube (2) away from fuel
supply pump (6).
(6)
Tighten two inside clamps (7).
(7)
Remove fuel hose (8) from fuel supply
pump (6).
(8)
Disconnect wire harness (9) from fuel
temperature sensor (10).
(9)
Remove three screws ( 11), fuel supply
pump (6), and gasket (12) from blower
housing (13). Discard gasket and screws.
NOTE
Fork may stay with fuel supply pump
or blower housing.
(10)
Remove fork (14) from fuel supply pump
(6).
4-7
|
