TM 9-2320-360-34-1
4-4. FUEL SUPPLY PUMP/COUPLING FORK REPAIR
This task covers:
a. Removal
d. Assembly
b. Disassembly
e. Installation
c. Cleaning/Inspection
f. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Electronic control module removed
Adhesive-Sealant, Silicone (Item 2,
(TM 9-2320-360-20).
Appendix B)
Cloth, Crocus (Item 16, Appendix B)
Tools and Special Tools
Compound, Sealing, Pipe Thread (Item 28,
Tool Kit, Genl Mech (Item 202, Appendix E)
Appendix B)
Tool Set, Fuel Pump (Item 205, Appendix E)
Grease, Automotive and Artillery (Item 32,
Blocks, Wooden (Figure C-3, Appendix C)
Appendix B)
Compressor Unit, Air (Item 24, Appendix E)
Oil, Lubricating (Item 45, Appendix B)
Goggles, Industrial (Item 57, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Socket, Pipe Plug (Item 165, Appendix E)
Tags, Identification (Item 56, Appendix B)
Socket Set, Deep Well, 12 Point, 1/2 In. Drive
Ties, Cable, Plastic (Item 60, Appendix B)
(Item 167, Appendix E)
Gasket (Item 55, Appendix F)
Vise, Machinist's (Item 207, Appendix E)
Gasket, Fuel Pump to Eng (Item 70, Appendix F)
Wrench Set, Line (Item 229, Appendix E)
Lockwashers (8) (Item 118, Appendix F)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Screws, Nylon Patch (3) (Item 283, Appendix F)
Appendix E)
Seals, Oil (2) (Item 313, Appendix F)
a.
Removal
WARNING
Fuel is very flammable and can
explode easily. To avoid serious
injury or death, keep fuel away from
open fire and keep fire extinguisher
within easy reach when working with
fuel. Do not work on fuel system
when engine is hot. Fuel can be
ignited by hot engine. When working
with fuel, post signs that read NO
SMOKING
WITHIN
50
FEET
OF
VEHICLE.
NOTE
Location of plastic cable ties should
be marked before removal.

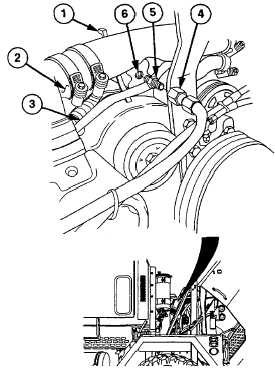

(1)
Remove
plastic
cable
ties
(1)
from
crossover tube (2) and hose (3) as
required.
(2)
Remove fuel hose (4) from fitting (5).
(3)
Remove fitting (5) from fuel supply pump
(6).
4-6
|
