TM 9-2320-360-34-1
b.
Installation
(1)

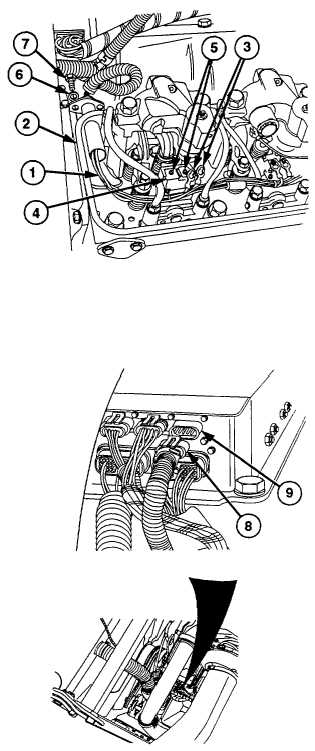

Insert fuel injector wire harness (1) in
cylinder head (2).
(2)
Install fuel injector wires (3) on fuel
injectors (4).
(3)
Tighten eight screws (5).
(4)
Install fuel injector wire harness (1) on
cylinder head (2) with two washers (6) and
screws (7).
NOTE
Do step (5) for left side wiring
harness only.
(5)
Install
fuel
injector
wiring
harness
connector (8) on ECM (9).
c.
Follow-On Maintenance
(1)
Install rocker covers (TM 9-2320-360-20).
(2)
Install ECM (right side wire harness only)
(TM 9-2320-360-20).
(3)
Connect batteries (TM 9-2320-360-20).
(4)
Clear
historical
codes,
mode
40
(para 2-4).
4-5
|
