4-3. INJECTOR WIRING HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools
Batteries disconnected (TM 9-2320-360-20).
Tool Kit, Genl Mech (Item 202, Appendix E)
Rocker covers removed (TM 9-2320-360-20).
ECM removed (right side harness only)
(TM 9-2320-360-20).
a.
Removal
NOTE
· Do step (1) for left side wiring
harness only.
· Connector is removed by gently
prying on clip and pulling on
connector.

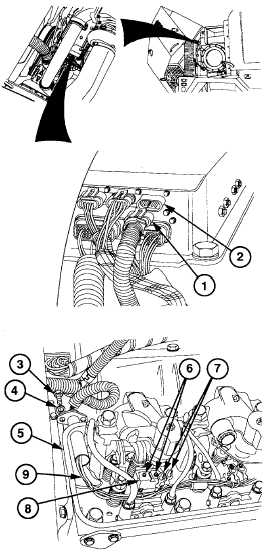

(1)
Remove
fuel
injector
wire
harness
connector (1) from ECM (2).
(2)
Remove two screws (3) and washers (4)
from cylinder head (5).
CAUTION
Screws are designed not to be
removed. Loosen screws only two
turns. Failure to comply may result
in damage to injector.
(3)
Loosen eight screws (6) and remove fuel
injector wires (7) from four fuel injectors
(8).
(4)
Remove fuel injector wiring harness (9)
from cylinder head (5).
