3-26. ENGINE BRAKE RETARDER REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Ring, Seal (Item 248, Appendix F)
Engine brake retarder wire harness removed
(para 6-16).
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
NOTE
·
All engine brake retarders are
replaced the same way. Forward
set on left cylinder head is
shown.
·
Supply brakes are equipped with
solenoids.

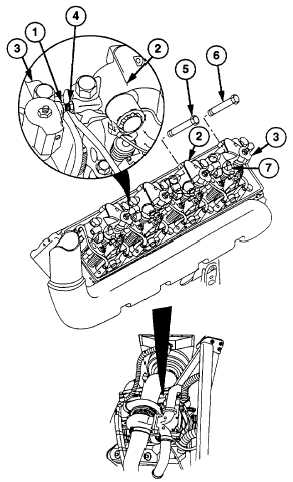

(1)
Loosen connector nut (1) between right
brake (2) and left brake (3).
(2)
Screw connector (4) into left brake (3) to
clear right brake (2).
(3)
Remove two mounting screws (5) from
right brake (2) and two mounting screws
(6) from left brake (3).
(4)
Remove right brake (2) and left brake (3)
from injector rocker clevis (7).
