TM 9-2320-360-34-1
3-25. TACHOMETER DRIVE GEAR REPLACEMENT (CONT)
b.
Installation

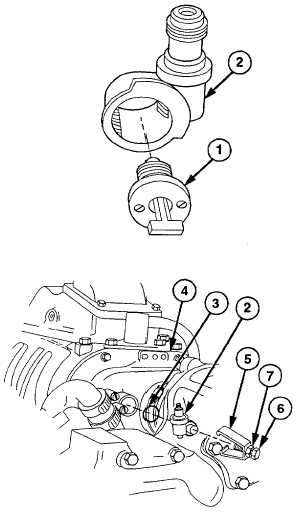

(1)
Install
tachometer
drive
gear
(1)
in
tachometer drive housing (2).
(2)
Install new gasket (3) and housing (2) on
blower cover (4).
(3)
Install clamp (5) and tighten screw (6).
(4)
Tighten jamnut (7) on screw (6).
c.
Follow-On Maintenance
(1)
Install
tachometer
sending
unit
(TM 9-2320-360-20).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check
tachometer
operation
(TM 9-2320-360-10).
(4)
Shut off engine (TM 9-2320-360-10).
3-132
|
