TM 9-2320-360-34-1
3-22. OIL PRESSURE REGULATOR VALVE REPLACEMENT (CONT)
b.
Installation
NOTE
Oil
pressure
regulator
valve
is
mounted on left side of engine.

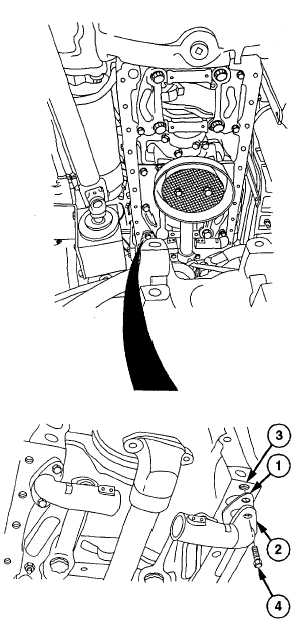

Install new gasket (1) and oil pressure regulator
valve (2) on engine (3) with two screws (4).
Torque to 30-35 lb-ft (41-47 Nm).
c.
Follow-On Maintenance
Install oil pan (para 3-20).
3-124
|
