TM 9-2320-360-34-1
3-23. EXHAUST MANIFOLD AND GASKET REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Condition
Tools and Special Tools
Engine shut off (TM 9-2320-360-10).
Tool Kit, Genl Mech (Item 202, Appendix E)
Parking brake on (TM 9-2320-360-10).
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Wheels chocked.
Appendix E)
Engine hood opened (TM 9-2320-360-10).
Air cleaner removed (left exhaust manifold
Materials/Parts
only) (TM 9-2320-360-20).
Clamps (2) (Item 7, Appendix F)
Gaskets (4) (Item 40, Appendix F)
Locknuts (5) (Item 76, Appendix F)
a.
Removal
WARNING
Ensure
exhaust
manifold
and
exhaust
tube
are
cool
before
performing maintenance. Failure to
comply may result in serious injury
to personnel.
NOTE
Left and right manifolds are removed
the same way. Left manifold is
shown.
(1)

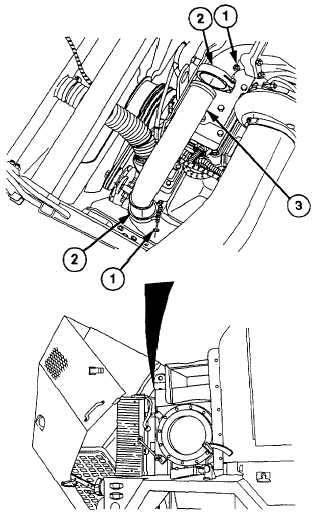

Remove two locknuts (1) from clamps (2)
on exhaust tube (3). Discard locknuts.
(2)
Remove two clamps (2) and exhaust tube
(3) from engine compartment.
(3)
Remove two clamps (2) from exhaust tube
(3). Discard clamps.
3-125
|
