TM 9-2320-360-34-1
3-22. OIL PRESSURE REGULATOR VALVE REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Oil pan removed (3-20).
Gasket (Item 35, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Goggles, Industrial (Item 57, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
WARNING
Oil Is present above oil pressure
regulator valve. Wear approved eye
protection when removing valve.
Failure to comply may result in injury
to personnel.

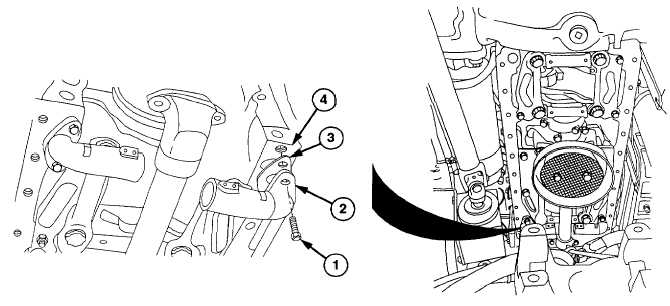

Remove two screws (1), oil pressure regulator
valve (2), and gasket (3) from engine (4).
Discard gasket.
3-123
|
