TM 9-2320-360-34-1
3-21. OIL PRESSURE RELIEF VALVE REPLACEMENT (CONT)
b.
Installation
NOTE
Oil pressure relief valve is mounted
on right side of engine.

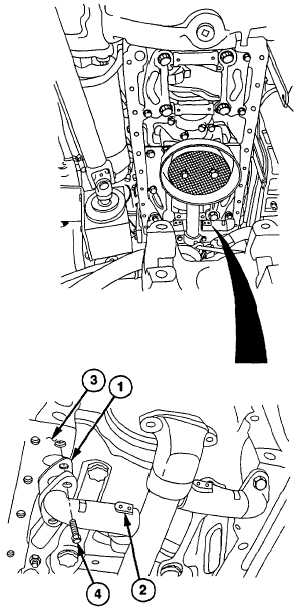

Install new gasket (1) and oil pressure relief
valve (2) on engine (3) with two screws (4).
Torque to 30-35 lb-ft (41-47 Nm).
c.
Follow-On Maintenance
Install oil pan (para 3-20).
3-122
|
