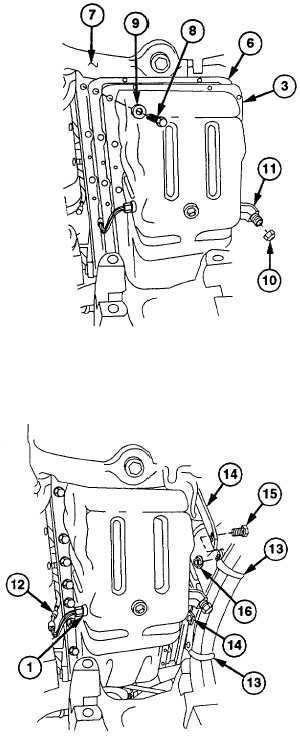

Position new gasket (6) and oil pan (3) on
engine block (7).
WARNING
Adhesive-sealant can bum easily, can
give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(6)
Coat threads of 18 screws (8) with
adhesive-sealant.
NOTE
Ensure flanged shoulder bolts are
used in installation.
(7)
Install 18 washers (9) and screws (8) on
oil pan (3). Do not tighten.
(8)
Starting with two center screws and
working alternately toward each end of
pan, tighten screws (8) to 120-240 lb-in.
(13.5-27 Nm).
(9)
Install drain cap (10) on elbow (11).
(10)
Connect
electrical
connector
(12)
to
STE/ICE oil temperature sensor (1).
(11)
Install two cushion clips (13) on brackets
(14) with two screws (15) and new
locknuts (16).
