TM 9-2320-360-34-1
3-20. OIL PAN AND GASKET REPLACEMENT (CONT)
(12)

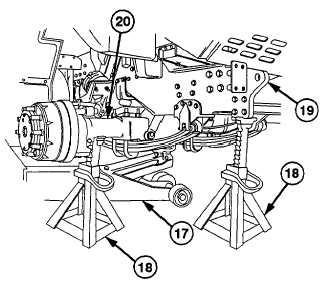

Raise HET Tractor with floor jack (17) and
remove two jackstands (18) from under
front tow eyes (19).
(13)
Position two jackstands (18) under axle
(20).
(14)
Lower HET Tractor onto jackstands (18)
and remove floor jack (17).
d.
Follow-On Maintenance
(1)
Fill oil pan with new oil (LO 9-2320-360-12). Check oil level.
(2)
Install transfer case to axle no. 1 propeller shaft (TM 9-2320-360-20).
(3)
Install axle no. 1 tie rod (TM 9-2320-360-20).
(4)
Install front wheels/tires (TM 9-2320-360-20).
(5)
Install axle no. 1 shock absorber bracket (TM 9-2320-360-20).
(6)
Install front bumper (TM 9-2320-360-20).
(7)
Start engine. Check oil pressure. Run for 20 minutes and check oil
level (TM 9-2320-360-10).
(8)
Check for leaks (TM 9-2320-360-10).
(9)
Remove wheel chocks.
3-120
|
