(3)

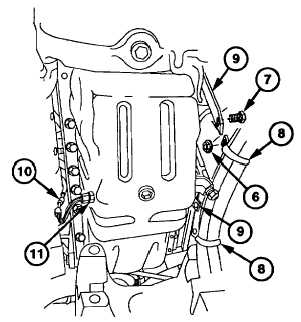

Remove two locknuts (6), screws (7), and
cushion clips (8) from brackets (9).
Discard locknuts.
(4)
Disconnect electrical connector (10) from
STE/ICE oil temperature sensor (11).
WARNING
When
servicing
this
vehicle,
performing
maintenance,
or
disposing
of
materials
such
as
engine oil, consult your Unit/local
hazardous waste disposal center or
safety office for local regulatory
guidance. If further information is
needed, please contact the Army
environmental hotline at 1-800-872-
3845. Improper disposal of this
material may result in damage to
environment or injury to personnel.
(5)
Place drain pan under engine block (12).
(6)
Remove drain cap (13) and drain oil.
(7)

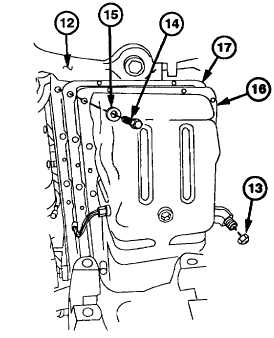

Remove 18 screws (14) and washers (15)
from oil pan (16).
(8)
Remove oil pan (16) and gasket (17) from
underside of engine block (12). Discard
gasket.
