TM 9-2320-360-34-1
3-20. OIL PAN AND GASKET REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Front bumper removed (TM 9-2320-360-20).
Pan, Oil Drain (Item 102, Appendix E)
Axle no. 1 shock absorber bracket
Wrench Set, Socket, 3/8 In. Drive (Item 232,
removed (TM 9-2320-360-20).
Appendix E)
Front wheels/tires removed
Wrench, Torque, 0-175 Lb-Ft (Item 236,
(TM 9-2320-360-20).
Appendix E)
Axle no. 1 tie rod removed
Wrench, Torque, 0-300 Lb-In. (Item 235,
(TM 9-2320-360-20).
Appendix E)
Transfer case to axle no. 1 propeller shaft
removed (TM 9-2320-360-20).
Materials/Parts
Adhesive-Sealant (Item 6, Appendix B)
Tools and Special Tools
Compound, Sealing, Pipe Thread (Item 28,
Adhesive-Sealant, Silicone (Item 2, Appendix B)
Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Oil, Fuel, Diesel (Item 38, Appendix B)
Compressor Unit, Air (Item 24, Appendix E)
Oil, Lubricating (Item 45, Appendix B)
Goggles, Industrial (Item 57, Appendix E)
Gasket (Item 23, Appendix F)
Jack, Floor (Item 90, Appendix E)
Locknuts (2) (Item 96, Appendix F)
Jackstands (4) (Item 93, Appendix E)
a.
Removal
(1)

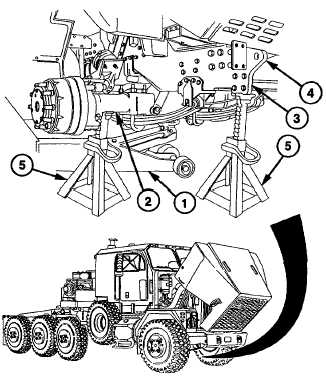

Position floor jack (1) under axle (2) and
raise HET Tractor.
NOTE
There must be at least 4 in. (10 cm)
between axle stops and axle housing
to remove oil pan.
(2)
Support frame (3) under front tow eyes (4)
with two jackstands (5) and support axle
(2) with two jackstands (5).
3-116 Change 1
|
