TM 9-2320-360-34-1
(24.1)

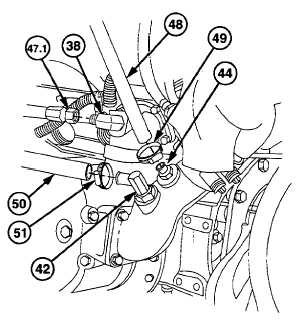

Install hose no. 2826 (47.1) on elbow
(38).
(25)
Install hose no. 2866 (48) on fitting (44)
and tighten clamp (49). Torque to 40 lb-
in. (4.5 Nm).
(26)
Install hose no. 2651 (50) on elbow (42)
with clamp (51). Torque to 40 lb-in. (4.5
Nm).
(27)
Deleted.
c.
Follow-On Maintenance
(1)
Install engine oil filter element (TM 9-2320-360-20).
(2)
Install lower radiator hose (TM 9-2320-360-20).
(3)
Install radiator (TM 9-2320-360-20).
(4)
Install inner fender (TM 9-2320-360-20).
Change 1 3-115
|
