(6)

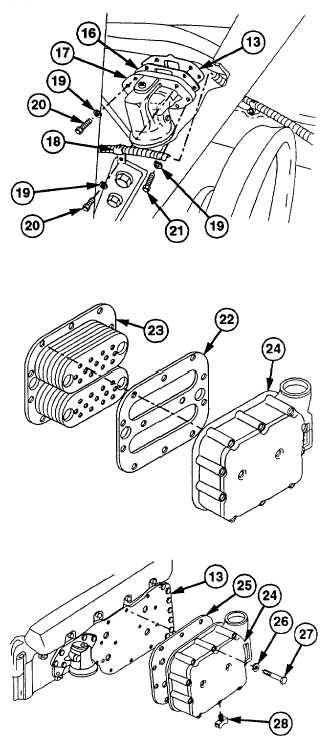

Install new gasket (16), oil filter head (17),
and wire harness clip (18) on cover plate
(13) with six new lockwashers (19), four
screws (20), and two screws (21). Torque
to 30-35 lb-ft (41-47 Nm).
(7)
Tighten eight screws (15) to 180 lb-in.
(20.3 Nm).
(8)
Install new gasket (22) and core (23) on
oil cooler housing (24).
(9)
Install new gasket (25) on oil cooler
housing (24).
(10)
Install oil cooler housing (24) on cover
plate (13) with 12 new lockwashers (26)
and screws (27) with aid of assistant.
Torque to 180 lb-in. (20.3 Nm).
(11)
Install drain cock (28) in bottom of oil
cooler housing (24).
