TM 9-2320-360-34-1
3-19. OIL COOLER AND HOUSING REPAIR (CONT)
(24)

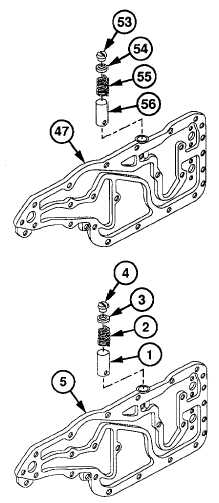

Remove plug (53), gasket (54), spring
(55), and valve (56) from adapter (47).
Discard gasket.
b.
Installation
(1)
Install valve (1) with open end up, spring
(2), new gasket (3), and plug (4) in
adapter (5). Torque to 30 Ib-ft (41 Nm).
(2)
Coat two new gaskets (6) with grease.
WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
(3)
Coat threads of three screws (7) with
adhesive-sealant.
(4)

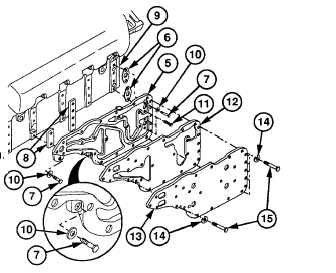

Install two spacers (8), new gaskets (6),
and adapter (5) on engine (9) with three
washers (10), screws (7), and screws
(11). Torque to 30-35 lb-ft (41-47 Nm).
(5)
Install new gasket (12) and cover plate
(13) on adapter (5) with eight new
lockwashers (14) and screws (15). Do not
tighten.
3-112
|
