TM 9-2320-360-34-1
(18)

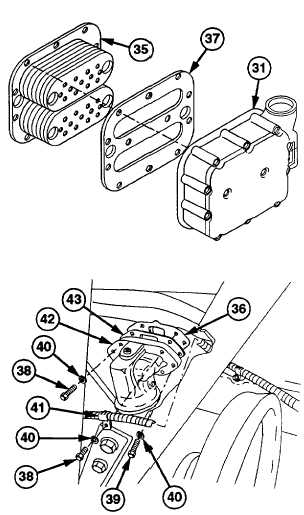

Separate core (35) and gasket (37) from
oil cooler housing (31). Discard gasket.
(19)
Remove four screws (38), two screws
(39), six lockwashers (40), wire harness
dip (41), oil filter head (42), and gasket
(43) from cover plate (36). Discard
lockwashers and gasket.
(20)
Remove
eight
screws
(44)
and
lockwashers (45) from cover plate (36).
Discard lockwashers.

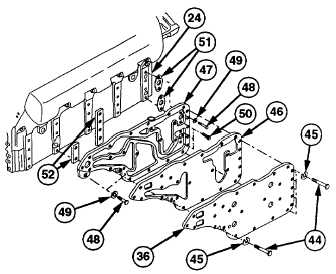

(21)
Remove cover plate (36) and gasket (46)
from adapter (47). Discard gasket.
(22)
Remove three screws (48), washers (49),
and screws (50) from adapter (47).
(23)
Remove adapter (47), two gaskets (51),
and spacers (52) from engine (24).
Discard gaskets.
3-111
|
