3-19. OIL COOLER AND HOUSING REPAIR (CONT)
(11)

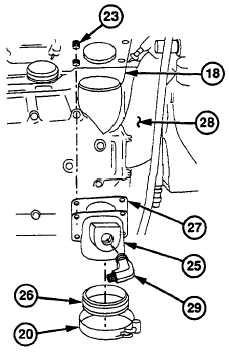

Slide clamp (20) and seal (26) down oil
cooler (18).
(12)
Remove flange elbow (25), clamp (20),
seal (26), and gasket (27). Discard seal,
clamp, and gasket.
NOTE
Do step (13) if studs are damaged.
(13)
Remove two studs (23) from engine block
(28).
(14)
Remove elbow (29) from flange elbow
(25).
NOTE
Place suitable container under oil
cooler housing.
(15)
Remove drain cock (30) from bottom of oil
cooler housing (31).

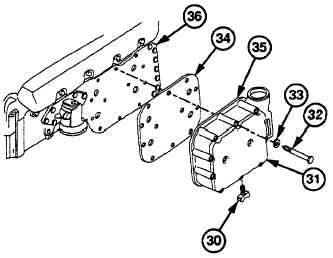

(16)
Remove
12
mounting
screws
(32),
lockwashers (33), oil cooler housing (31),
gasket (34), and core (35) from cover
plate (36) with aid of assistant. Discard
lockwashers.
(17)
Remove gasket (34) from oil cooler housing
(31). Discard gasket.
ENGINE SHOWN REMOVED FROM
CHASSIS FOR CLARITY
