Deleted.
(4)

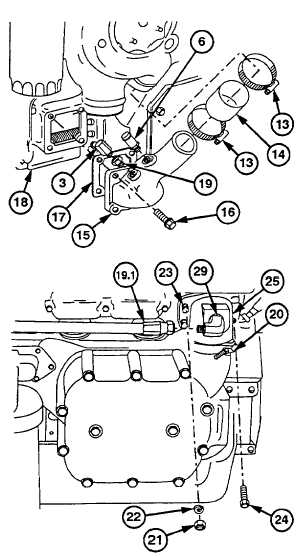

Loosen two clamps (13) and slide hose
(14) down onto oil cooler inlet elbow (15).
(5)
Remove four screws (16), oil cooler inlet
elbow (15), and gasket (17) from oil cooler
(18). Discard gasket.
(6)
Remove hose (14) and two clamps (13).
(7)
Remove fitting (6), elbow (3), and bushing
(19) from oil cooler inlet elbow (15).
(7.1)
Remove hose no. 2628 (19.1) from elbow
(29).
(8)
Loosen clamp (20).
(9)
Remove two nuts (21) and lockwashers
(22)
from
studs
(23).
Discard
lockwashers.
(10)
Remove two screws (24) from flange
elbow (25).
