TM 9-2320-360-34-1
3-19. OIL COOLER AND HOUSING REPAIR
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts (Cont)
Radiator removed (TM 9-2320-360-20).
Adhesive-Sealant (Item 6, Appendix B)
Lower radiator hose removed
Compound, Sealing, Pipe Thread (Item 28,
(TM 9-2320-360-20).
Appendix B)
Engine oil filter element removed
Grease, Automotive and Artillery (Item 32,
(TM 9-2320-360-20).
Appendix B)
Inner fender removed (right side only)
Tags, Identification (Item 56, Appendix B)
(TM 9-2320-360-20).
Clamp (Item 8, Appendix F)
Gaskets (2) (Item 37, Appendix F)
Tools and Special Tools
Gasket (Item 22, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Gasket (Item 28, Appendix F)
Bit Set, Screwdriver (Item 9.1, Appendix E)
Gasket (Item 34, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Gasket (Item 57, Appendix F)
Wrench Set, Socket, 3/8 In. Drive (Item 232,
Gasket (Item 63, Appendix F)
Appendix E)
Gasket (Item 68, Appendix F)
Wrench, Torque, Click-Type, 15-100 Lb-Ft
Lockwashers (20) (Item 119, Appendix F)
(Item 238, Appendix E)
Lockwashers (8) (Item 127, Appendix F)
Wrench; Torque, 0-150 Lb-In. (Item 234,
Seal (Item 291, Appendix F)
Appendix E)
Personnel Required
Two
a.
Removal
NOTE
Tag and mark hoses before removal.

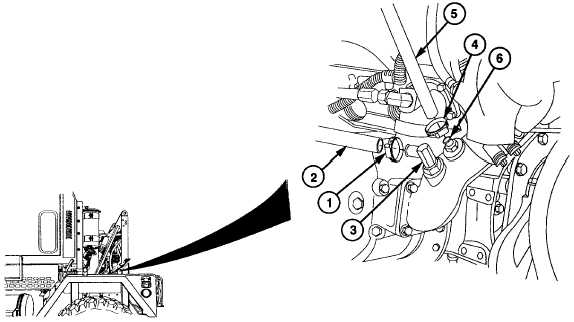

(1)
Loosen clamp (1) and remove hose no.
2651 (2) from elbow (3).
(2)
Loosen clamp (4) and remove hose no.
2866 (5) from fitting (6).
3-108 Change 2
|
