NOTE
Install
rocker
arms
in
positions
marked during removal.
(2)

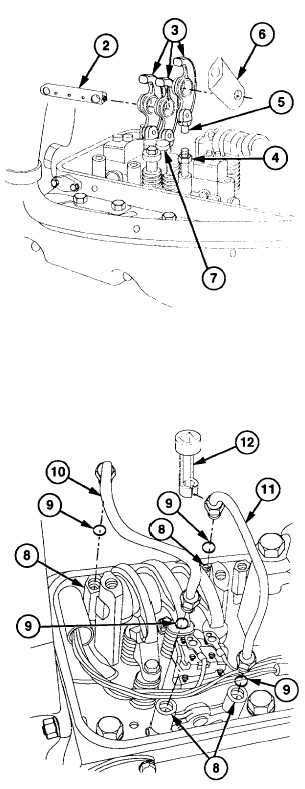

Thread each of three rocker arms (3) onto
three push rods (4) until end of each
pushrod is flush with or above inside of
each clevis yoke (5).
(3)
Coat shaft (2) with oil and slide it through
three rocker arms (3).
(4)
Install two brackets (6), one over each end
of shaft (2), with finished face next to
rocker arms (3).
(5)
Position rocker arms (3) down on valve
bridge (7).
(6)
Remove
caps
from
four
fuel
tube
connectors (8).
CAUTION
Do not overtighten fuel tubes. Leaks
can develop which may cause severe
damage to engine.
(7)
Install four new seal rings (9) and two fuel
tubes (10 and 11) on fuel tube connectors
(8). Torque to 144 lb-in. (16.3 Nm) using
fuel line nut wrench (12).
f.
Follow-On Maintenance
Install engine brake retarder (para 3-26).
