3-18. ROCKER ARM REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Condition
Materials/Parts
Engine brake retarder removed (para 3-26).
Caps, Shipping and Sealing (Item 13,
(Appendix B)
Tools and Special Tools
Oil, Lubricating (Item 45, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Solvent, Dry Cleaning (Item 54, Appendix B)
Wrench, Fuel Line Nut (Item 222, Appendix E)
Tags, Identification (Item 56, Appendix B)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Plug (Item 228, Appendix F)
Appendix E)
Rings, Seal (4) (Item 272, Appendix F)
a.
Removal
NOTE
· All sets of rocker arms are
replaced the same way. One set is
shown.
· Tag and mark fuel tubes before
removal.
(1)

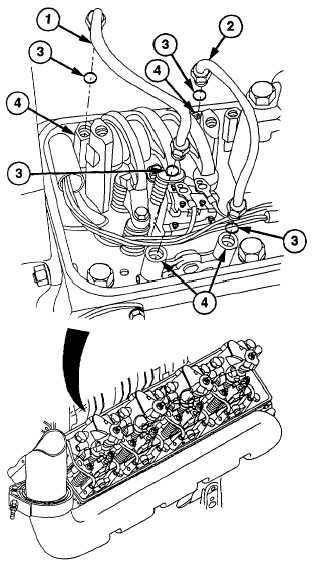

Remove two fuel tubes (1 and 2) and four
seal rings (3) from fuel tube connectors
(4). Discard seal rings.
CAUTION
Fuel line connectors must be covered
to prevent foreign material from
entering fuel system. Failure to
comply may result in damage to
engine.
(2)
Cover four fuel tube connectors (4) with
caps.
