TM 9-2320-360-34-1
(3)

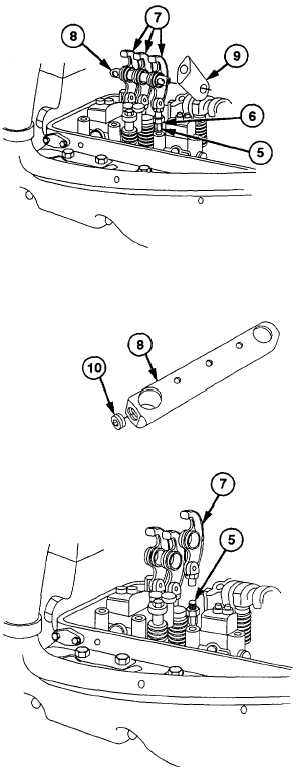

Hold three push rods (5) and loosen three
locknuts (6).
CAUTION
Do not force rocker arms all the way
back with shaft in place. Failure to
comply may result in damage to push
rods.
(4)
Move three rocker arms (7), shaft (8), and
two brackets (9) up and toward center of
engine to permit shaft (8) to be removed.
(5)
Remove two brackets (9) from shaft (8).
(6)
Remove shaft (8) from rocker arms (7).
NOTE
Do step (7) only if rocker shaft fails
inspection.
(7)
Remove plug (10) from shaft (8). Discard
plug.
NOTE
Tag rocker arms before removal.
(8)
Remove three rocker arms (7) from three
push rods (5).
3-105
|
