TM 9-2320-360-34-1
WARNING
Compressed air for cleaning purposes will not exceed 30 psi (207 kPa). Use only
with effective chip guarding and personal protective equipment (goggles/shield,
gloves, etc.).
(2)
Dry disks with compressed air.
(3)
Inspect disks for breaks, excessive wear, or signs of overheating.
(4)
Replace any broken, worn, or overheated disks.
c.
Installation
(1)

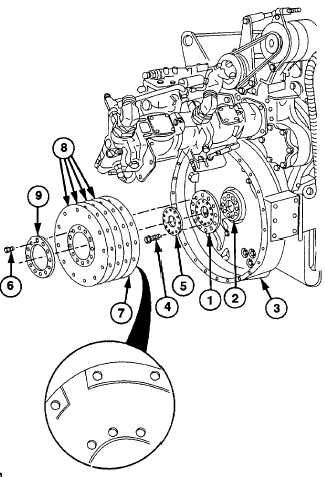

Align screw holes in hub (1) with crankshaft (2) in flywheel housing (3).
WARNING
Sealing compound can bum easily, can
give off harmful vapors, and is harmful
to skin and clothing. To avoid injury or
death, keep away from open fire and
use in well-ventilated area. If sealing
compound gets on skin or clothing,
wash immediately with soap and water.
(2)
Coat 12 screws (4) with no. 2 international
compound.
(3)
With rough side toward engine, install hub
(1) and plate (5) with 12 screws (4).Torque
to 50 lb-ft (68 Nm). Tighten additional 1/4
turn.
(4)
Coat 12 screws (6) with international no. 2
compound.
CAUTION
Disk with reinforcement plates must be
installed first with plates facing engine.
Failure to comply may cause damage
to equipment.
NOTE
Each disk has one small hole for
alignment purposes. Each small hole
must be aligned with small holes on
other disks.
(5)
Align holes in disk (7), four disks (8), and
plate (9) with hub (1).
(6)
Install disk (7), 4 disks (8), and plate (9) with
12 screws (6). Torque to 96-115 lb-ft (130-
156 Nm).
d.
Follow-On Maintenance
Install transmission (para 7-4).
3-103
|
