3-17. FLEXPLATE ASSEMBLY REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Condition
Materials/Parts
Transmission removed (para 7-4).
Compound, No. 2, International (Item 21,
Appendix B)
Tools and Special Tools
Solvent, Dry Cleaning (Item 54, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Compressor Unit, Air (Item 24, Appendix E)
Goggles, Industrial (Item 57, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
(1)

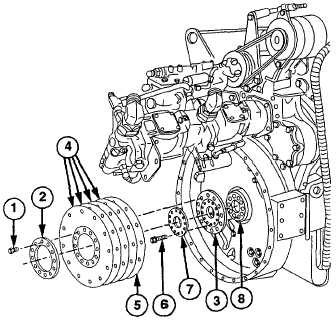

Remove 12 screws (1) and plate (2) from
hub (3).
(2)
Remove four disks (4) and disk (5) from
hub (3).
(3)
Remove 12 screws (6), plate (7), and hub
(3) from crankshaft (8).
b.
Cleaning/Inspection
WARNING
Dry cleaning solvent P-D-680 Is toxic and flammable. Wear protective goggles and
gloves and use only In a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point Is 100-138° F (38-59°C). If you become dizzy while using cleaning
solvent, get fresh air Immediately and medical aid. If contact with eyes Is made,
wash your eyes with water and get medical aid Immediately.
(1)
Clean disks with dry cleaning solvent.
