TM 9-2320-360-34-1
(9)

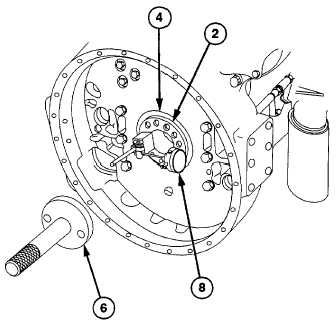

Attach magnetic dial indicator (8) on end
of crankshaft (2).
(10)
Position point of magnetic dial indicator (8)
on crankshaft seal (4).
CAUTION
When
using
front
crankshaft
capscrew to bar over engine, always
turn in clockwise direction. Turning
over in counterclockwise direction
may loosen capscrew and vibration
damper. Engine damage may result.
(11)
Rotate crankshaft and note readings at
12, 9, 6, and 3 o'clock positions. Total
runout at each position should not exceed
0.015 in. (0.38 mm).
(12)
If any reading is over 0.015 in. (0.38 mm),
place seal installer (6) over seal (4) and
lightly tap at high points.
c.
Follow-On Maintenance
Install flexplate (para 3-17).
3-101
|
