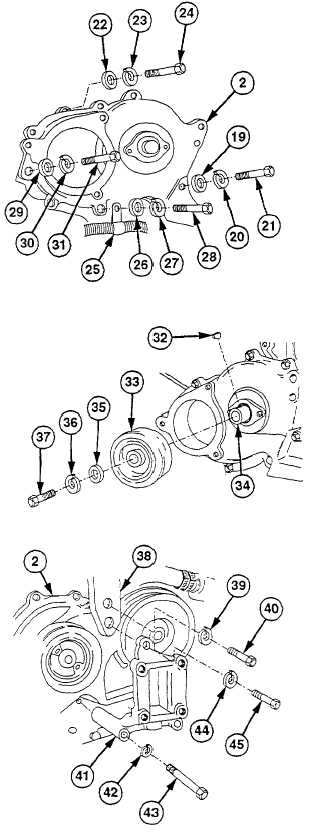

(9)
Install washer (19), new lockwasher (20),
and screw (21) on front cover (2). Do not
tighten.
(10)
Install washer (22), new lockwasher (23),
and screw (24) on front cover (2). Do not
tighten.
(11)
Install clip (25) on front cover (2) with
washer (26), new lockwasher (27), and
screw (28). Do not tighten.
(12)
Install washer (29), new lockwasher (30),
and screw (31) on front cover (2). Do not
tighten.
(13)
Tighten three nuts (10), screw (28), and
screw (31) to 30-35 lb-ft (41-47 Nm).
(14)
Tighten nut (14), nut (18), screw (21),
screw (24), and screw (31) to 35-40 lb-ft
(47-54 Nm).
(15)
Install key (32) and vibration damper (33)
on shaft (34).
(16)
Install washer (35), new lockwasher (36),
and screw (37) on vibration damper (33).
Torque to 25 lb-ft (34 Nm).
(17)
Install engine lifting bracket (38), new
lockwasher (39), and screw (40). Do not
tighten screw.
(18)
Install fan clutch support (41), new
lockwasher (42), and screw (43) in front
cover (2). Do not tighten.
(19)
Install lockwasher (44) and screw (45) in
fan clutch support (41). Do not tighten.
