TM 9-2320-360-34-1
3-15. VIBRATION DAMPER AND FRONT COVER REPLACEMENT (CONT)
WARNING
Compressed air for cleaning purposes will not exceed 30 psi (207 kPa). Use only
with effective chip guarding and personal protective equipment (goggles/shield,
gloves, etc.).
(3)
Dry parts with compressed air.
(4)
Inspect cover for cracks or other damage.
(5)
Replace damaged parts.
c.
Installation
NOTE
Do step (1) if dowel pins were
removed.

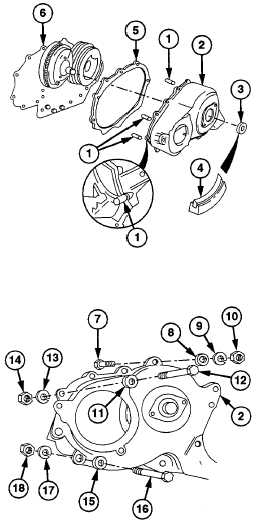

(1)
Install three dowel pins (1) on front cover
(2).
(2)
Install new oil seal (3) in front cover (2)
with seal lip (4) pointing inward.
(3)
Coat new gasket (5) with grease and
install on front cover (2).
(4)
Align dowel pins (1) on front cover (2) with
holes in end plate (6).
(5)
Install front cover (2) on end plate (6).
(6)
Install three screws (7), washers (8), new
lockwashers (9), and nuts (10) on front
cover (2). Do not tighten.
(7)
Install washer (11), screw (12), new
lockwasher (13), and nut (14) on front
cover (2). Do not tighten.
(8)
Install washer (15), screw (16), new
lockwasher (17), and nut (18) on front
cover (2). Do not tighten.
3-96
|
