TM 9-2320-360-34-1
3-15. VIBRATION DAMPER AND FRONT COVER REPLACEMENT (CONT)
(20)

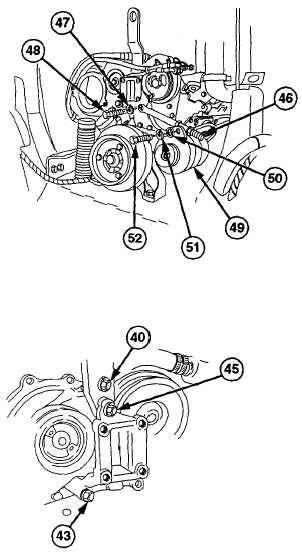

Install alternator adjusting bar (46), new
lockwasher (47), and screw (48). Do not
tighten.
(21)
Tighten screws (40,45, and 48) to 140-150
lb-ft (190-203 Nm).
(22)
Tighten screw (43) to 90-100 lb-ft (122-
136 Nm).
(23)
Install alternator adjusting bar (46) on
alternator (49) with washer (50), new
lockwasher (51), and screw (52).
c.
Follow-On Maintenance
(1)
Install water pump (para 5-5).
(2)
Install fan clutch (TM 9-2320-360-20).
(3)
Install ECM (TM 9-2320-360-20).
3-98
|
