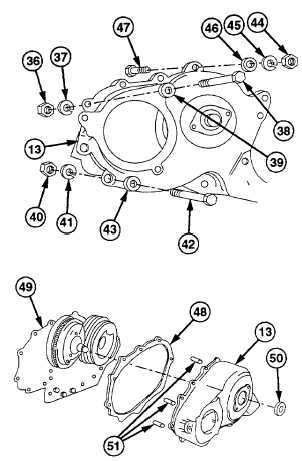

Remove nut (36), lockwasher (37), screw
(38), and washer (39) from front cover
(13). Discard lockwasher.
(13)
Remove nut (40), lockwasher (41), screw
(42), and washer (43) from front cover
(13). Discard lockwasher.
(14)
Remove three nuts (44), lockwashers
(45), washers (46), and screws (47) from
front cover (13).
(15)
Remove front cover (13) and gasket (48)
from end plate (49). Discard gasket.
(16)
Remove oil seal (50) from front cover (13).
Discard oil seal.
NOTE
Do step (17) if dowel pins fail
inspection.
(17)
Remove three dowel pins (51) from front
cover (13).
b.
Cleaning/Inspection
CAUTION
Use care when scraping gasket material from front cover. Damage to equipment
may result.
(1)
Scrape gasket material from front cover.
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only In a well-ventilated area. Avoid contact with skin, eyes, and
clothes, and don't breathe vapors. DO NOT use near open flame or excessive heat.
The flash point is 100-138° F (38-59° C). If you become dizzy while using cleaning
solvent, get fresh air immediately and medical aid. If contact with eyes is made,
wash your eyes with water and get medical aid immediately.
(2)
Clean metal parts with dry cleaning solvent.
