TM 9-2320-360-34-1
3-15. VIBRATION DAMPER AND FRONT COVER REPLACEMENT (CONT)
(3)
Remove screw (9) and lockwasher (10)
from fan dutch support (3).
(4)
Remove screw (11), lockwasher (12), and
fan dutch support (3) from front cover (13).
Discard lockwasher.
(5)
Remove screw (14), lockwasher (15), and
engine lifting bracket (16) from front cover
(13). Discard lockwasher.
(6)

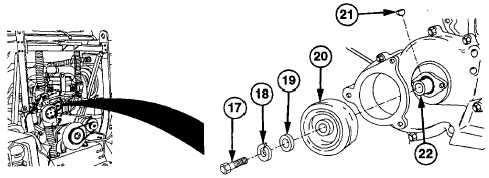

Remove screw (17), lockwasher (18), and
washer (19) from vibration damper (20).
Discard lockwasher.
(7)
Remove vibration damper (20) and key
(21) from shaft (22) using puller.
NOTE
Tag and mark screws, lockwashers,
washers, and front cover before
removal.
(8)
Remove screw (23), lockwasher (24), and
washer (25) from front cover (13). Discard
lockwasher.
(9)
Remove screw (26), lockwasher (27),
washer (28), and clip (29) from front cover
(13). Discard lockwasher.
(10)
Remove screw (30), lockwasher (31), and
washer (32) from front cover (13). Discard
lockwasher.
(11)
Remove screw (33), lockwasher (34), and
washer (35) from front cover (13). Discard
lockwasher.
3-94
|
