TM 9-2320-360-34-1
3-15. VIBRATION DAMPER AND FRONT COVER REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Condition
Materials/Parts
ECM removed (TM 9-2320-360-20).
Grease, Automotive and Artillery (Item 32,
Fan clutch removed (TM 9-2320-360-20).
Appendix B)
Water pump removed (para 5-5).
Solvent, Dry Cleaning (Item 54, Appendix B)
Tags, Identification (Item 56, Appendix B)
Tools and Special Tools
Gasket (Item 44, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Lockwashers (10) (Item 127, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Lockwashers (3) (Item 106, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Lockwasher (Item 122, Appendix F)
Puller Kit, Mechanical, Gear and Brg
Lockwasher (Item 134, Appendix F)
(Item 124, Appendix E)
Seal, Oil (Item 314, Appendix F)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
(1)

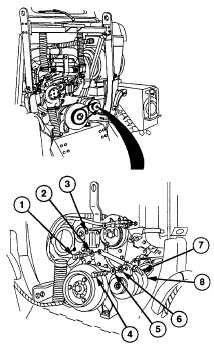

Remove screw (1) and lockwasher (2)
from fan clutch support (3). Discard
lockwasher.
(2)
Remove
screw
(4),
lockwasher
(5),
washer (6), and alternator adjusting bar
(7) from alternator (8).
3-93
|
