TM 9-2320-360-34-1
3-13. DDEC PULSE WHEEL REPLACEMENT (CONT)
(3)

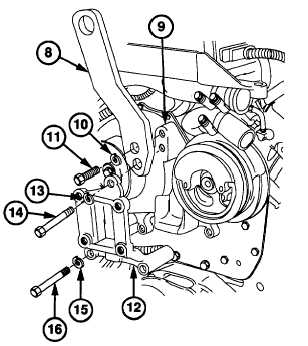

Install engine lifting bracket (8) on front
cover (9) with new lockwasher (10) and
screw (11). Do not tighten.
(4)
Install fan clutch support (12) on front
cover (9) with new lockwasher (13) and
screw (14). Do not tighten.
(5)
Install new lockwasher (15) and screw
(16) in fan clutch support (12).
(6)
Tighten screws (11 and 16) to 140-170 Ib-
ft (190-203 Nm).
(7)
Tighten screw (14) to 90-100 Ib-ft (122-
136 Nm).
c.
Follow-On Maintenance
(1)
Install 24-volt (front) alternator strap (TM 9-2320-360-20).
(2)
Install fan clutch (TM 9-2320-360-20).
(3)
Adjust SRS/TRS (para 3-7 or 3-7.1).
3-90 Change 3
|
