b.
Installation
WARNING
Adhesive-sealants can burn easily,
can give oft harmful vapors, and are
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. It adhesive-sealant gets on skin
or clothing, wash immediately with
soap and water.
NOTE
· Two alignment pins on pulse wheel
must be installed in alignment
holes on back of camshaft pulley.
· DDEC II engines have a 13 tooth
pulse wheel; DDEC III engines have
a 36 tooth pulse wheel.
(1)
Coat threads of four screws (1) with
adhesive-sealant.
(1.1)

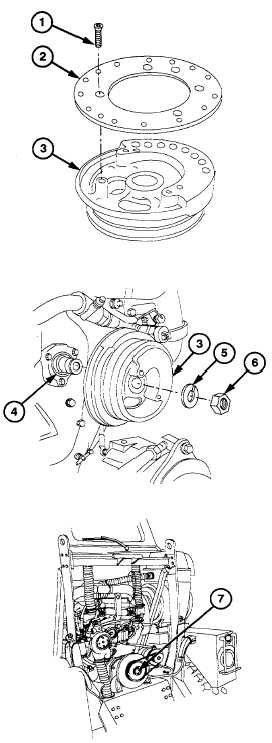

Install DDEC pulse wheel (2) on camshaft
pulley (3) with four screws (1).
(2)
Install camshaft pulley (3) on left side
camshaft (4) with new lockwasher (5) and
nut (6). Tighten to 300 Ib-ft (407 Nm)
while assistant holds crankshaft pulley
center screw (7).
