TM 9-2320-360-34-1
3-14. CRANKSHAFT VIBRATION DAMPER REPAIR
This task covers:
a. Removal
d. Installation
b. Disassembly
e. Follow-On Maintenance
c. Assembly
INITIAL SETUP
Equipment Condition
Materials/Parts
Crankshaft pulley removed (para 3-12).
Oil, Lubricating (Item 45, Appendix B)
Pins (2) (Item 213, Appendix F)
Tools and Special Tools
Ring, Seal (Item 249, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Puller Kit, Mechanical, Gear and Brg
(Item 124, Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
CAUTION
Use care when removing vibration
damper. Do not pound or pry on
vibration damper. Failure to comply
may damage damper.

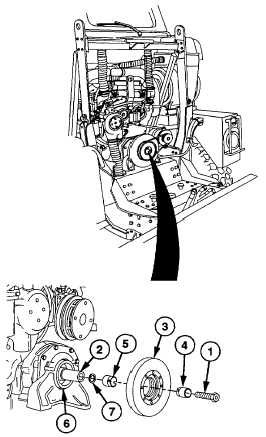

(1)
Install screw (1) in end of crankshaft
(2).Loosen vibration damper (3).
(2)
Remove screw (1) and outer sleeve
spacer (4) from crankshaft (2).
(3)
Remove
vibration
damper
(3)
from
crankshaft (2) using puller.
(4)
Turn cone (5) clockwise and remove from
crankshaft (2) inside trunnion support (6).
(5)
Remove seal ring (7) from cone (5).
Discard seal ring.
3-91
|
