TM 9-2320-360-34-1
3-13. DDEC PULSE WHEEL REPLACEMENT (CONT)
(4)

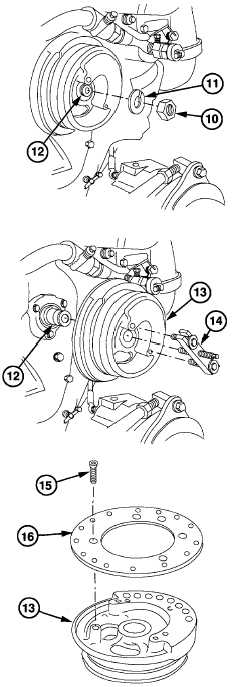

Remove nut (10) and lockwasher (11)
from left side camshaft (12). Discard
lockwasher.
(5)
Remove camshaft pulley (13) from left
side camshaft (12) using puller (14).
(6)
Remove four screws (15) and DDEC
pulse wheel (16) from camshaft pulley
(13).
3-88
|
