3-13. DDEC PULSE WHEEL REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
24-volt (front) alternator strap removed
Adhesive-Sealant (Item 6, Appendix B)
(TM 9-2320-360-20).
Lockwasher (Item 106, Appendix F)
Fan clutch removed (TM 9-2320-360-20).
Lockwasher (Item 134, Appendix F)
Lockwasher (Item 141, Appendix F)
Tools and Special Tools
Personnel Required
Tool Kit, Genl Mech (Item 202, Appendix E)
Two
Puller Kit, Mechanical, Gear and Brg
(Item 124, Appendix E)
Wrench Set, Socket, 3/4 in. Drive (Item 231,
Appendix E)
Wrench, Torque, 0-175 Ib-ft (Item 236,
Appendix E)
Wrench, Torque, 0-600 Ib-ft (Item 233,
Appendix E)
a.
Removal
(1)

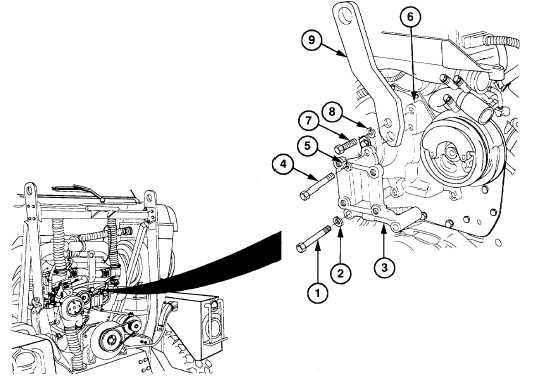

Remove screw (1) and lockwasher (2)
from fan clutch support (3). Discard
lockwasher.
(2)
Remove screw (4), lockwasher (5), and
fan clutch support (3) from front cover (6).
Discard lockwasher.
(3)
Remove screw (7), lockwasher (8), and
engine lifting bracket (9) from front cover
(6). Discard lockwasher.
