TM 9-2320-360-34-1
b.
Installation
(1)

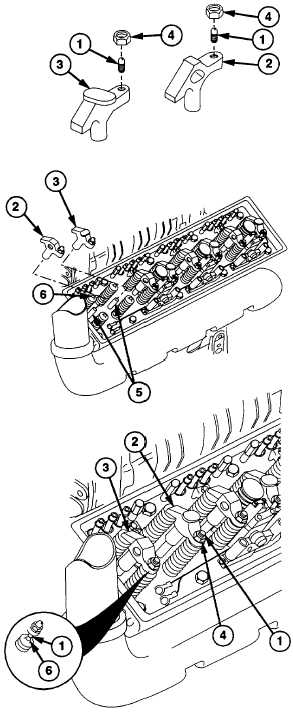

Install screw (1) into valve bridge (2 or 3).
(2)
Install nut (4) on screw (1). Do not
tighten.
(3)
Install valve bridge (2 or 3) on bridge
guide (5) making sure groove in bridge fits
over top of valve stem (6).
(4)
Push down firmly on top of valve bridge (2
or 3) and turn adjusting screw (1) until it
just touches valve stem (6).
(5)
Turn screw (1) an additional 1/4 turn and
tighten nut (4) finger tight.
(6)
Remove valve bridge (2 or 3) and mount
in soft-jawed vise.
(7)
Hold screw (1) and tighten nut (4) to 240-
300 lb-in. (27-34 Nm).
INJECTOR REMOVED FOR CLARITY
3-83
|
