3-11. VALVE BRIDGE REPAIR
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Rocker arms removed (para 3-18).
Oil, Lubricating (Item 47, Appendix B)
Tags, Identification (Item 56, Appendix B)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Gages, Feeler (2) (Item 50, Appendix E)
Wrench, Torque, 0-300 Lb-In. (Item 235,
Appendix E)
a.
Removal
NOTE
· Tag valve bridges so they may be
installed in original locations at
installation.
· Remove remaining fifteen valve
bridges in same way.

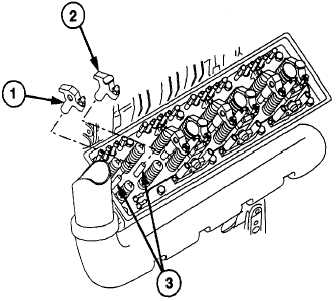

(1)
Remove valve bridge (1 or 2) from valve
bridge guides (3).
(2)
Place valve bridge (1 or 2) in soft-jawed
vise.

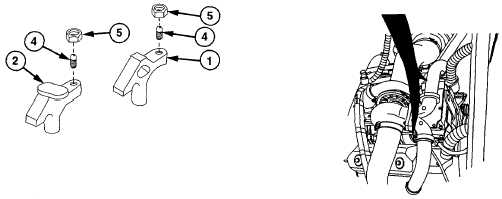

(3)
Remove screw (4) and nut (5) from valve
bridge (1 or 2).
(4)
Remove nut (5) from screw (4).
(5)
Remove valve bridge (1 or 2) from vise.
INJECTOR REMOVED FOR CLARITY
