TM 9-2320-360-34-1
(17)

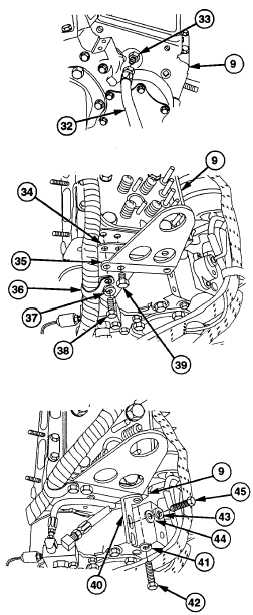

Install coolant hose no. 2628 (32) on
fitting (33) on cylinder head (9).
(18)
Install new gasket (34), engine lifting
bracket (35), and cushion clip (36) on
cylinder head (9) with new lockwasher
(37) and screw (38). Torque to 46 Ib-ft
(62 Nm).
NOTE
Do step (19) for left cylinder head
only.
(19)
Install screw (39) on cylinder head (9).
(20)
Install bracket (40) with new lockwasher
(41) and screw (42) on cylinder head (9).
(21)
Install two new lockwashers (43), washers
(44), and screws (45). Torque to 46 lb-ft
(62 Nm).
d.
Follow-On Maintenance
(1)
Install fuel injectors (para 4-2).
(2)
Install injector wiring harness (para 4-3).
(3)
Install valve bridges (para 3-11).
(4)
Install exhaust manifold (para 3-23).
(5)
Install left thermostat housing (left cylinder head only) (para 5-3).
(6)
Install right thermostat housing (right cylinder head only) (para 5-4).
(7)
Install radiator and shroud (TM 9-2320-360-20).
(8)
Install 12-volt (rear) alternator/bracket and strap (right cylinder head only) (TM 9-2320-360-20).
3-81
|
