TM 9-2320-360-34-1
3-10. CYLINDER HEAD REPLACEMENT (CONT)
(13)

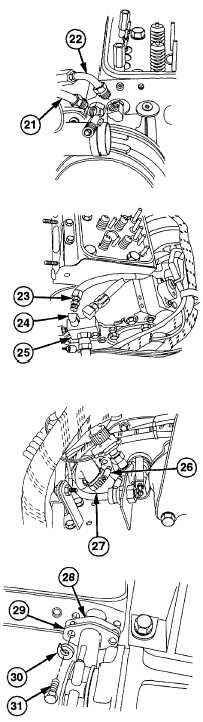

Connect two fuel lines (21 and 22).
NOTE
Do steps (14) and (15) for left cylinder
head only.
(14)
Install fuel line (23) on fitting (24) on fuel
manifold (25).
(15)
Tighten clamp (26) on breather hose (27).
NOTE
Do steps (16) and (17) for right
cylinder head only.
(16)
Install new gasket (28) and breather tube
(29) with two new lockwashers (30) and
screws (31).
3-80
|
