NOTE
Do steps (3) and (4) for left cylinder
head only.

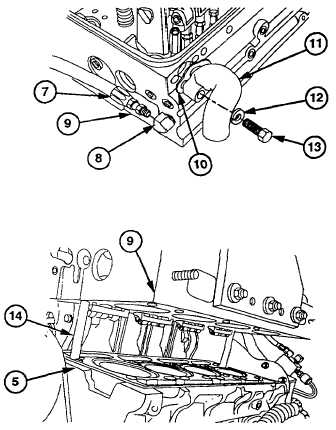

(3)
Install fuel line (7) on fitting (8) on cylinder
head (9).
(4)
Install new gasket (10) and breather tube
(11) on cylinder head (9) with two new
lockwashers (12) and screws (13).
(5)
Install two cylinder head guide studs (14)
into top corners of engine block (5).
(6)
Align cylinder head (9) with guide studs
while assistant operates suitable lifting
device.
CAUTION
Make
a
final
check
of
the
compression
gaskets,
seals,
and
shims to ensure they are in place.
Any gasket or seal left out of place
may result in engine damage.
(7)
Lower cylinder head (9) on engine block
(5).
