TM 9-2320-360-34-1
(16)

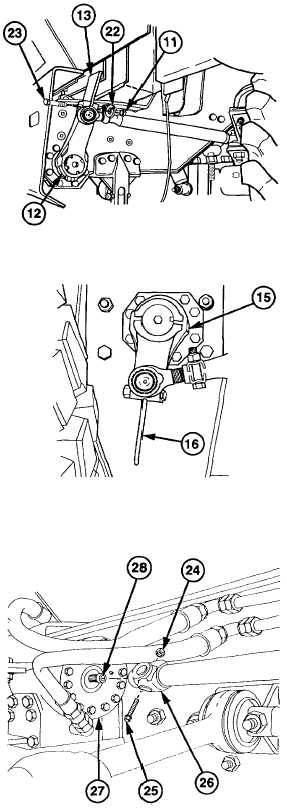

Remove nut (11), lockwasher (22), screw
(23), and steel plate (13) from front pitman
arm (12). Discard lockwasher.
(17)
Install screw (23), new lockwasher (22),
and nut (11) on front pitman arm (12).
Torque to 90 lb-ft (122 Nm).
NOTE
Correct rear pitman arm angle is
when pitman arm is angled forward
9°.
(18)
Position combination square on steel plate
(16) and measure rear pitman arm (15)
angle.
NOTE
Do steps (19) thru (21) to correct rear
pitman arm angle.
(19)
Remove locknut (24), screw (25), and
steering shaft no. 5 (26) from rear steering
gear (27). Discard locknut.
(20)
Rotate rear steering gear input shaft (28)
until pitman arm (15) moves forward to an
angle of 9.
(21)
Install steering shaft (26) on steering gear
(27) with screw (25) and new locknut (24).
Torque to 35-40 lb-ft (47-54 Nm).
Change 2 13-45
|
