TM 9-2320-360-34-1
b.
Steering Gear Pitman Arm Angle Adjustment
(1)

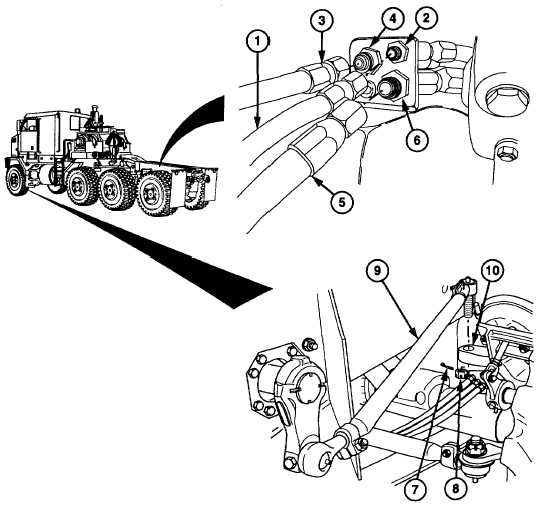

Remove hose no. 2141 (1) from fitting (2).
(2)
Remove hose no. 2016 (3) from fitting (4).
(3)
Remove hose no. 2873 (5) from fitting (6).
WARNING
Support drag link after removing
hardware to prevent it from falling.
Failure to comply may result in
injury.
NOTE
Axle no. 1 and axle no. 4 drag links
are removed from steering arm the
same way. Axle no. 1 is shown.
(4)
Remove cotter pin (7) from nut (8).
Discard cotter pin.
(5)
Remove nut (8) from drag link (9).
(6)
Remove drag link (9) from steering arm
(10) using hydraulic hand jack.
(7)
Repeat steps (4) thru (6) for axle no. 4.
13-43
|
