13-6. REAR STEERING GEAR REPLACEMENT (CONT)
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use In
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(2)

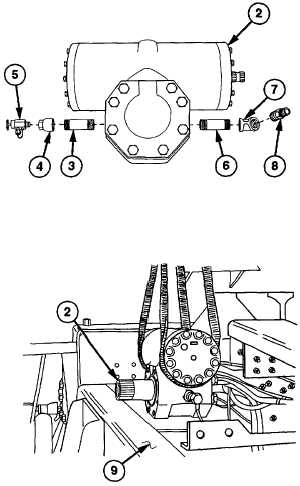

Coat threads of pipe (3), adapter (4) and
sampling valve (5) with pipe thread
sealing compound.
(3)
Install pipe (3), adapter (4), and sampling
valve (5) on steering gear (2).
(4)
Coat threads of pipe (6), elbow (7), and
adapter (8) with pipe thread sealing
compound.
(5)
Install pipe (6), elbow (7), and adapter (8)
on steering gear (2).
WARNING
Steering gear weighs 175 lb (79 kg).
Support steering gear when installing
hardware to prevent it from falling.
Failure to comply may result in
injury.
(6)
Install sling around both ends of steering
gear (2) and attach to lifting device.
NOTE
·
Steering gear mounting surface
should be clear of all foreign
material.
·
Steering gear, angle bracket, and
two screws must be installed
simultaneously.
(7)
Position steering gear (2) on frame (9)
with aid of assistant.
